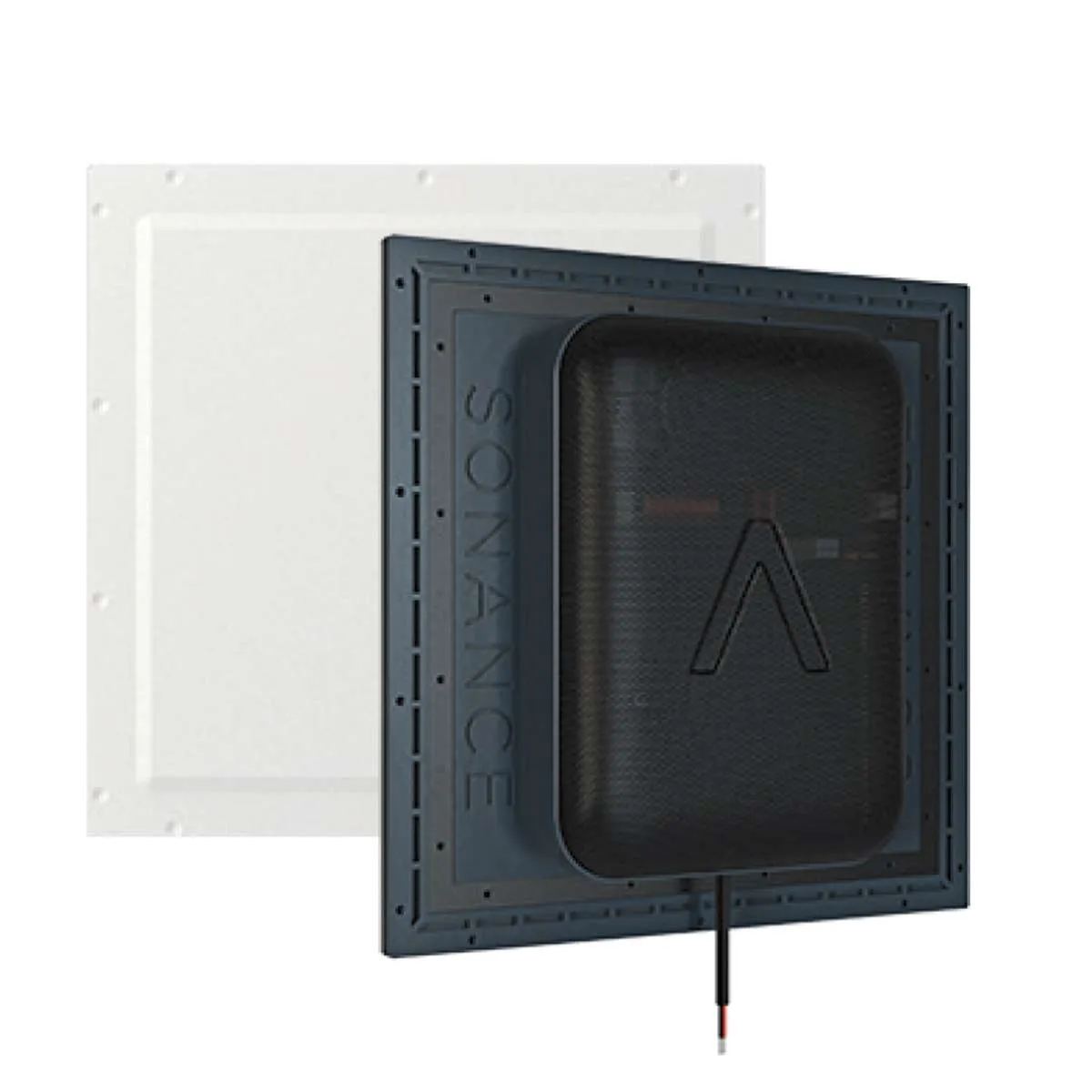

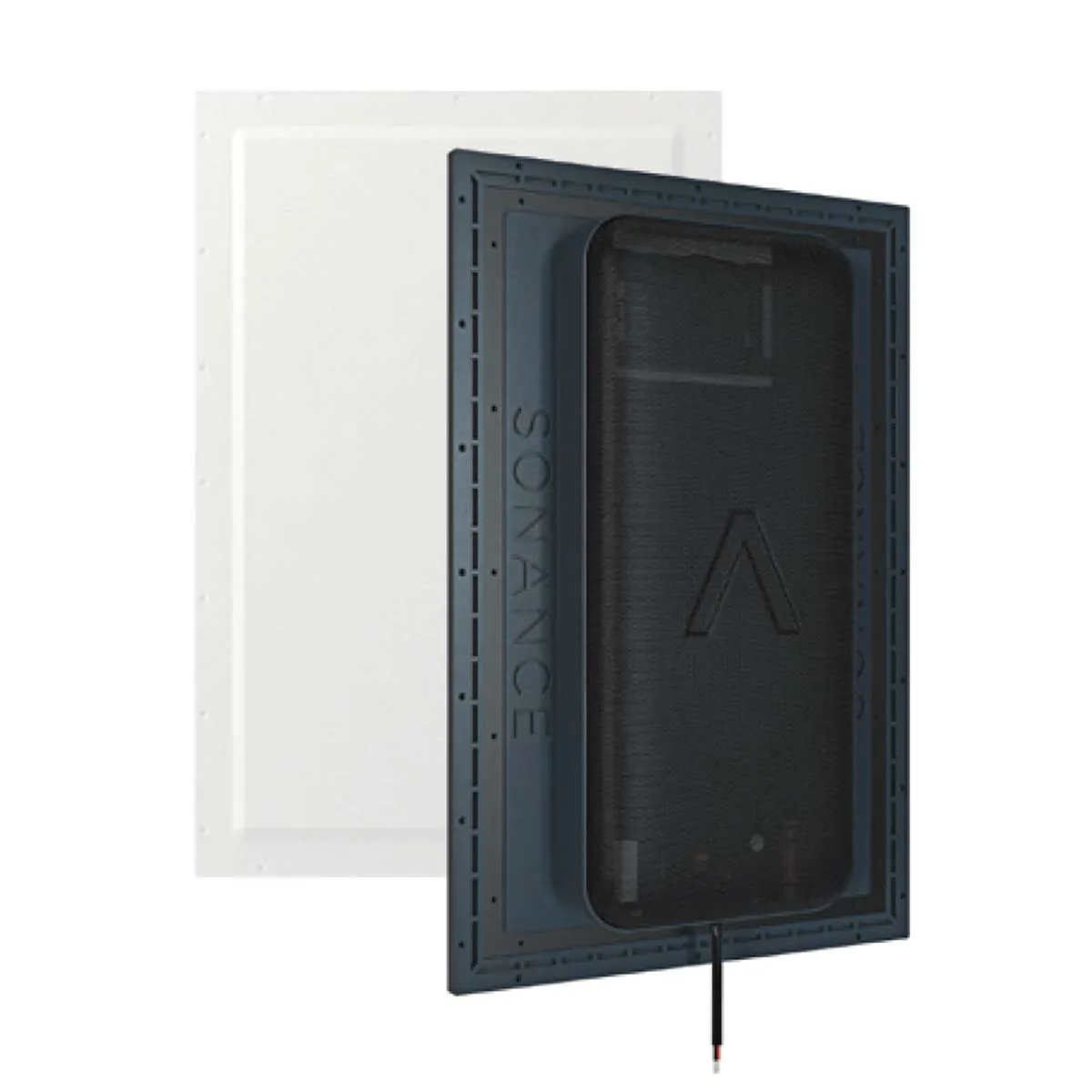

Sonance Invisible Series
Sonance Invisible Series is the ultimate expression in architectural audio. Installed into the wall or ceiling and then finished over with the surrounding surface, Invisible Series speakers deliver ambient music that emanates throughout the space with no visual footprint.
Sonance Invisible Series delivers unbelievable sound quality that emanates from the wall or ceiling, without any visible signs of a speaker. The space is filled with breathtaking music that seemingly comes from nowhere.
Sonance Invisible Series speakers are finished over with the same material as the adjoining wall or ceiling surface, including regular drywall finishing compound and paint, wallpaper, wood veneer, or even venetian plaster. They don’t just blend into the wall or ceiling, they become part of it.
Sonance Invisible Series features the widest range of speakers to deliver zero visual impact in any size space. They can be found in luxury residences, art galleries, museums, restaurants and premier retail boutiques. They are also used exclusively world-wide by Louis Vuitton, Prada, Gucci, Miu Miu, Fendi and Dior!
Specifications
IS6 |
IS8 |
IS10 |
|
|
UOM |
PAIR
|
PAIR
|
PAIR
|
| Wave flext drive unit |
20in² (127cm²) bending wave diaphragm 1.75" (44mm) voice coil
|
29in² (188cm²) bending wave diaphragm 1.75" (44mm) voice coil
|
29in² (188cm²) bending wave diaphragm 1.75" (44mm) voice coil
|
|
Air flex Woofer |
98in² (633cm²) air pulse diaphragm 6.5" (165mm) carbon fiber woofer
|
191in² (1234cm²) air pulse diaphragm 8" (203mm) carbon fiber woofer
|
244in² (1573cm²) air pulse diaphragm 10" (254mm) carbon fiber woofer
|
|
Frequency Response |
50Hz–30kHz (±3dB)
|
40Hz–30kHz (±3dB)
|
35Hz–30kHz (±3dB)
|
| Impedance |
6 Ohms Nominal
|
6 Ohms Nominal
|
6 Ohms Nominal
|
|
Power Handling |
100W |
160W | 200W |
|
Sensitivity
|
84dB SPL (2.83V/1 meter)
|
86dB SPL (2.83V/1 meter)
|
87dB SPL (2.83V/1 meter)
|
| Dimensions |
16.10" x 16.10" x 3.15" (409mm x 409mm x 80mm)
|
16.10" x 24.13" x 3.15" (409mm x 613mm x 80mm)
|
16.10" x 28.66" x 3.15" (409mm x 728mm x 80mm)
|
|
Shipping Weight |
31.69 lbs (14.375 kgs)
|
42.36 lbs (19.215 kgs)
|
47.38 lbs (21.49 kgs)
|
